PC CAT DBU is a tertiary amine-based foaming catalyst that facilitates the urea (water-isocyanate) reaction in a variety of rigid and flexible polyurethane foam applications. It is the industry standard foaming catalyst for flexible foams and is used in TDI-based flexible foam systems such as mattresses, seats and automobiles. It is also used in combination with trimer catalysts in PIR laminate formulations. PC CAT DBU is also used in MDI, TDI/MDI, MDI high resiliency (HR) flexible molding foams, and self-crusting and microcellular systems. It has a shelf life of 36 months.
The CAS number for PC CAT DBU is 6674-22-2.
PC CAT DBU is also known as diazabicycloundecene.
The molecular formula of PC CAT DBU is C10H14N2.
Physical and Chemical Properties
The physicochemical properties of PC CAT DBU are shown in the following table:
Appearance Transparent colorless liquid
Odor Slight ammonia odor
Specific gravity 1.040
Boiling point 200℃
Flash point 100℃
Water solubility Miscible
Solubility in organic solvents Miscible
· Promotes urea (water-isocyanate) reaction
· Used in a variety of rigid and flexible polyurethane foam applications
· Industry standard foaming catalyst for flexible foams
· for TDI-based flexible foam systems such as mattresses, seats and automobiles
· is used in combination with trimer catalysts in PIR laminate formulations
· is also used in MDI, TDI/MDI, MDI high resiliency (HR) flexible molded foams as well as self-crusting and microcellular systems
· has a shelf life of 36 months
· flexible polyurethane foams
· cast-in-place polyurethane systems
·PIR laminated paperboard
·TDI, TDI/MDI, MDI High Resilience (HR) Flexible Molded Foam
· Self-crusting foam
· Microcellular foam
PC CAT DBU
Full name: 1,8-diazabicyclo[5.4.0]undec-7-ene
Chemical formula: C9H16N2
Relative density: 1.018
Melting point: -70°C
PC CAT DBU Physical Properties:
PC CAT DBU is a site-resistant amidine with a colorless or light yellow liquid appearance, possessing a basic nature, its 4% aqueous solution pH=10.98. PC CAT DBU is a thermosensitive amine catalyst whose catalytic activity increases significantly with increasing temperature. In organic synthesis, PC CAT DBU is used as catalyst, ligand and non-nucleophilic base.
The main use of PCCAT DBU is as an excellent organic base deacidifier for synthesis, and it can also be used as a rust inhibitor and can be formulated as a high slow corrosion inhibitor.
PCCAT DBU can also be used as a catalyst, in the polyurethane industry PC CAT DBU is a catalytically active low odor gel catalyst, which can be used in polyurethane foam, adhesives, elastomers, coatings, etc. PC CAT DBU can also be used as an epoxy resin anhydride curing accelerator.
PC CAT DBU derivatives:
PC CAT DBU derivatives are diverse and can be used in many fields such as polyurethane foam, adhesive, elastomer, epoxy potting compound, composite material, rubber synthesis, etc.

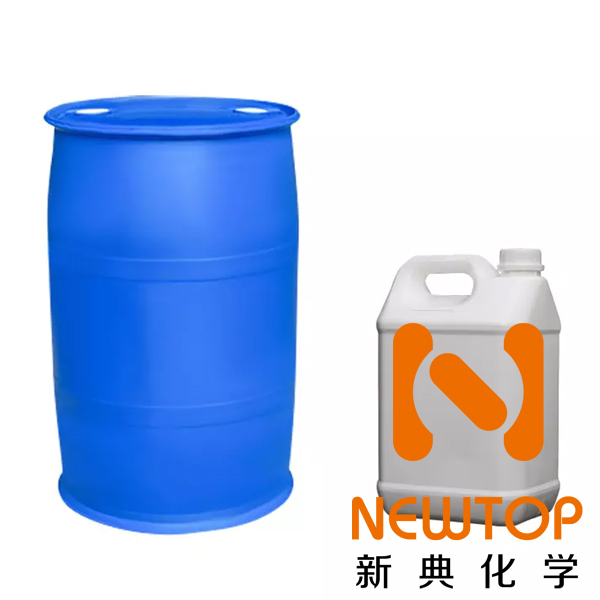

Packed in clean, dry, sealed and leak-free special plastic drums with a net weight of 20kg/25kg/180kg per drum.
Storage and transportation
When transporting Catalyst, it should be strictly protected from rain and staining, carefully and gently stored to prevent leakage from collision with hard objects. When storing Catalyst, it should be stored at room temperature in a ventilated and dry warehouse, avoiding humid environment, and the storage temperature should be kept below 25℃, avoiding sunlight as much as possible, and away from water and heat sources. To prevent moisture absorption and oxidation, it is recommended to fill the container with nitrogen.
Under proper storage conditions, the shelf life is 6 months from the date of manufacture, after which the product can be used after retesting.
Catalyst is somewhat toxic and should be rinsed with soapy water promptly after contact with skin. Staff can wear eye protection or safety glasses for the purpose of eye protection. Eye wash and drenching equipment should be provided near the workplace. When working in places where contact with the product is possible, attention should be paid to personal hygiene and the skin in contact with the product should be washed with washing products before eating, smoking and leaving the workplace.
Stop spills as much as possible while ensuring safety. If a minor spill is found, treat it with sand or other absorbent material and place it in a clean, dry container for subsequent disposal. If a large spill occurs, the spilled material should be collected for subsequent disposal. Avoid entering groundwater or surface water as the material is not readily biodegradable. All collected spilled material should be disposed of in accordance with local environmental regulations.
The information and technical advice provided above has been obtained from our reliable sources, however, we make no express or implied warranties with respect to the data provided and make no promises herein. If our products are to be used, we recommend that they undergo a series of tests. The application, use, processing or production of products based on the technical information provided by us is beyond our control and therefore these responsibilities are the responsibility of the user. The condition and method of handling, storage, use or disposal of this product is beyond our control and may be beyond our knowledge, and in no event will we be liable for loss, damage or costs associated with the improper handling, storage, use or disposal of this chemical. For more information, please review the technical safety sheets for our products or contact our marketing services department.
Promotes the reaction of hydroxyl functional groups with NCO
Catalyst is somewhat toxic and should be rinsed promptly with soapy water after contact with skin. Staff may wear eye protection or safety glasses for eye protection purposes. Eye wash and drenching equipment should be provided near the workplace. When working in places where contact with the product is possible, attention should be paid to personal hygiene and the skin in contact with the product should be washed with washing products before eating, smoking and leaving the workplace.
Keep unopened,two years
Storage and transportation:
Should be kept sealed and stored in a dry, cool and ventilated warehouse
200KG/drum Storage: It is recommended to store in dry and cool area with proper ventilation. Please fasten the lid as soon as possible after the original packaging to prevent the mixing of other substances such as water and other substances from affecting the product performance. Do not inhale dust and avoid skin and mucous membrane contact. Smoking, eating and drinking are prohibited in the workplace. After work, shower and change clothes. Store contaminated clothes separately and wash them before use. Maintain good hygiene habits.
